Type W Camlok Pigtails 2/0 & 4/0 - 3 ft Male or Female to Bare End
Type W Camlok Pigtails 2/0 & 4/0 - 3 ft Male or Female to Bare End. 3 ft Type W 2000V pigtails, 2/0 or 4/0, one male or female Cam-Lok to bare end, 7 colors. UL 1650, CSA C22.2 No. 96, MSHA approved.
Specifications
| Cable | Type W 2000V single conductor |
|---|---|
| Gauge | 2/0, 4/0 AWG |
| Length | 3 ft |
| Connectors | 1 Cam-Lok (male or female) + 1 bare end |
| Connector colors | Black, Red, Blue, White, Green, Yellow, Brown |
| Construction | EPDM rubber inner, CPE jacket, 30 gauge flexible stranding |
| Temperature | -40°C to +90°C dry, 90°C wet |
| Standards | UL Listed, UL 1650, CSA C22.2 No. 96, cULus, MSHA 07-KA150015, VW-1, FT-1, FT-5, RoHS |
Need a custom length, contractor or volume pricing? Call (833) 313-9473.
Product details
Applications:
Type W Portable Power Cable is suitable for use in industrial and mining applications as well as heavy-duty service and temporary as power supply. They are also used for motor, battery and generator leads.

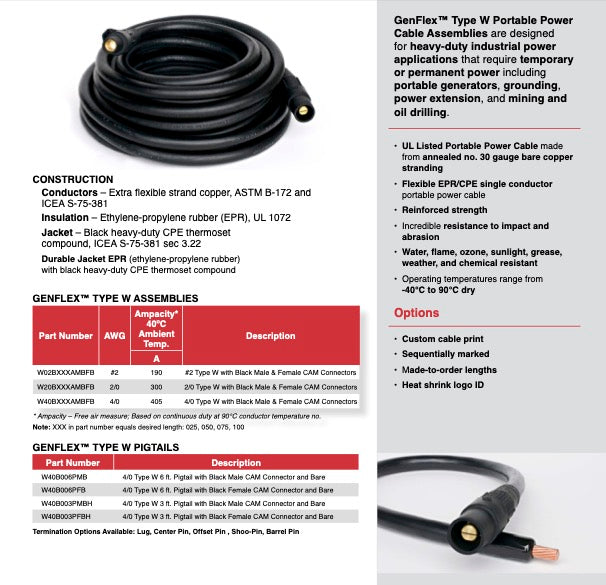

Construction:
Type W Industrial Grade Single conductor portable round power cable consists of an EPDM rubber inner and a CPE Jacket and 30 gauge flexible stranding. Oil and Sunlight Resistant. Single Conductors Listed as cULus. MSHA Approved. RoHS Compliant
Jacket Color:
Black
Length:
3ft
Connectors:
1 Cam-LokÂ
1 Bare End
Features/Standards:
• UL Listed
• UL 1650
• CSA C22.2 No. 96
• cULus
• Approved by Mine Safety Health Administration for use in mining applications. 07-KA150015-MHSA
• VW-1 • FT-1, FT-5
• -40°C + 90°C Dry
• 90°C Wet Rating
• RoHS Compliant
• Listed as Type RHH, RHW, & RHW-2 • MSHA 07-KA150015
