Type W 2000V Camlok Cable Assemblies - 2/0 & 4/0, 5 to 100 ft

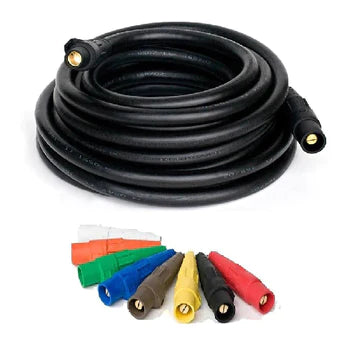

Type W 2000V Camlok Cable Assemblies - 2/0 & 4/0, 5 to 100 ft. Type W 2000V single-conductor 2/0 or 4/0 cable with male & female Cam-Loks, 5 to 100 ft, 7 colors. UL 1650, CSA C22.2 No. 96, MSHA approved.
Specifications
| Cable | Type W 2000V single conductor |
|---|---|
| Gauge | 2/0, 4/0 AWG |
| Lengths | 5, 10, 25, 50, 75, 100 ft |
| Connectors | 1 male + 1 female Cam-Lok |
| Connector colors | Black, Blue, Red, Yellow, White, Brown, Green |
| Construction | EPDM rubber inner, CPE jacket, 30 gauge flexible stranding |
| Temperature | -40°C to +90°C dry, 90°C wet |
| Standards | UL Listed, UL 1650, CSA C22.2 No. 96, cULus, MSHA 07-KA150015, VW-1, FT-1, FT-5, RoHS |
Need a custom length, contractor or volume pricing? Call (833) 313-9473.

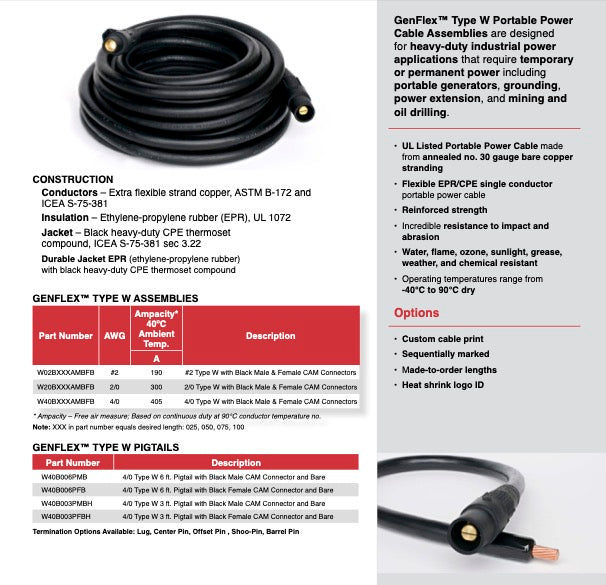

Product details
Applications:
Type W Portable Power Cable is suitable for use in industrial and mining applications as well as heavy-duty service and temporary as power supply. They are also used for motor, battery and generator leads.
Construction:
Type W Industrial Grade Single conductor portable round power cable consists of an EPDM rubber inner and a CPE Jacket and 30 gauge flexible stranding. Oil and Sunlight Resistant. Single Conductors Listed as cULus. MSHA Approved. RoHS Compliant
Jacket Color:
Black
Connectors:
1 Male Cam-LokÂ
1 Female Cam-Lok
Cam-Lok Color Options:
Black, Blue, Brown, Green, Orange, Red, White, Yellow
Features/Standards:
• UL Listed
• UL 1650
• CSA C22.2 No. 96
• cULus
• Approved by Mine Safety Health Administration for use in mining applications. 07-KA150015-MHSA
• VW-1 • FT-1, FT-5
• -40°C + 90°C Dry
• 90°C Wet rating
• RoHS Compliant
• Listed as Type RHH, RHW, & RHW-2 • MSHA 07-KA150015
